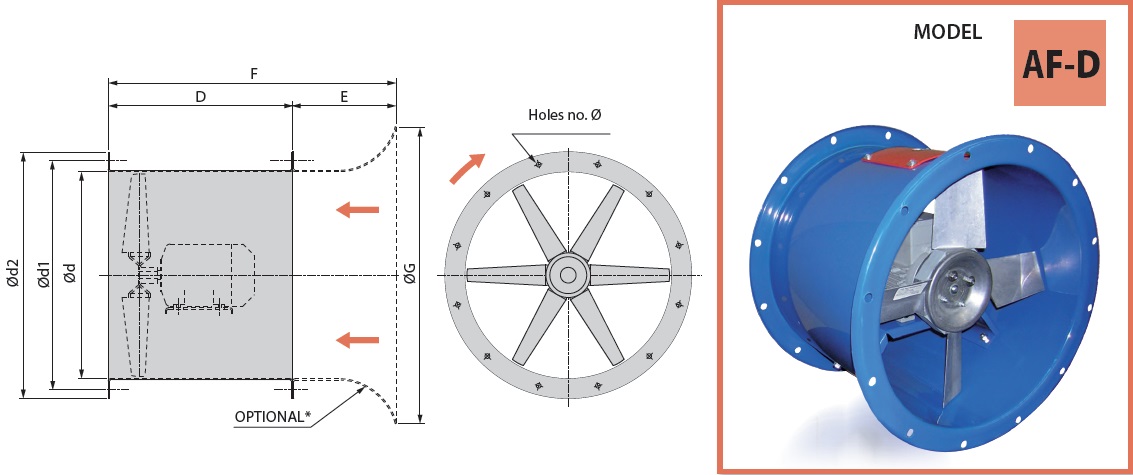

Ducted helical fan with nylon-glass impeller and alternatively cast aluminum impeller.

Suitable for moving large volumes of air at low pressure even in the presence of dust or fumes.

Maximum air temperature: 60°C. Special constructions on request.

General characteristics of AF-D series fans impeller: high-performance with air foil blade, fixed angle or variable angle from stationary, constructed of polypropylene or aluminum.

Use: it is used in canalizations in industrial plants for sucking high-temperature fluids, combustion smokes, steams, and air saturated with dust and pulverized liquids
These characteristics refer to standard operating conditions; in difficult operating conditions, it is advisable to contact ATOMVENT customer support to install the most suitable type of impeller.
