Centrifugal backward-bladed fan (in positive and negative versions) with high efficiency for low flow rates at high pressures, for even dusty air and pneumatic conveying.
Maximum air temperature: 60°C; with cooling fan 300°C. Special constructions on request.
General characteristics of FCN series fans

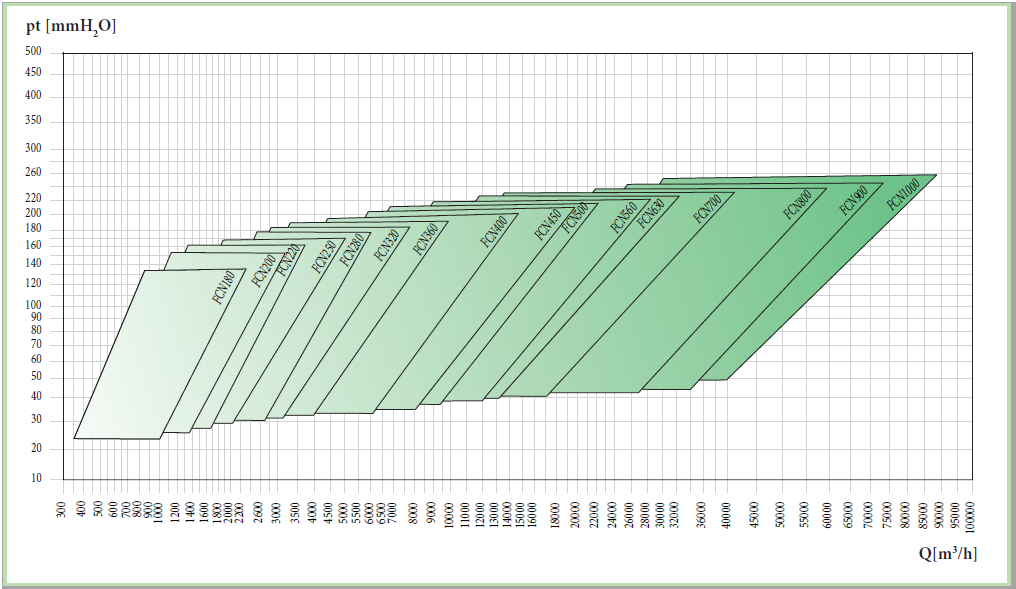

High efficiency industrial fan. Medium-high flow rates. Low pressure, performance from 700,00 m³/h to 80000,00 m³/h. Pressure from 245,0 Pa to 2800,0 Pa

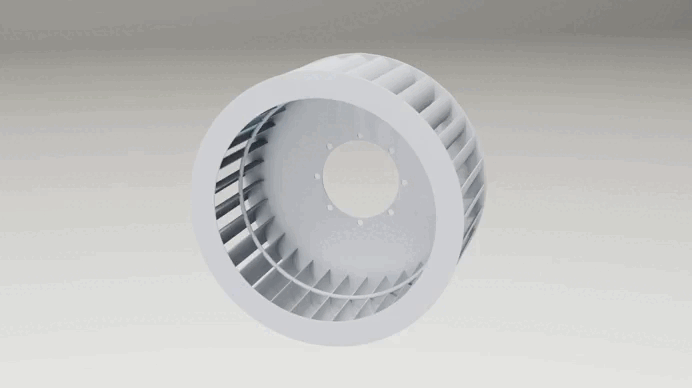

Shovel type: sirocco (squirrel cage).
Applications: suction of even dusty air, vapors, where large volumes of air are moved with low pressures.
Fluid temperatures: up to 60 °C in standard execution, special executions for higher temperatures.

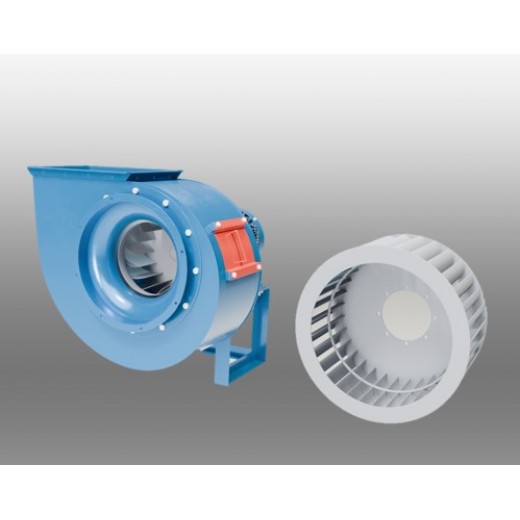

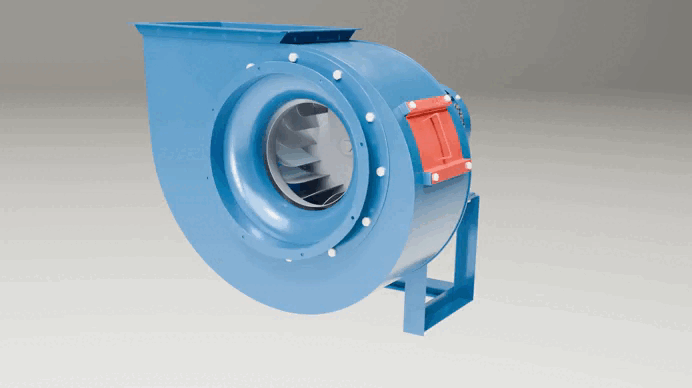

Construction features: sturdy construction of painted sheet metal, fan made of sheet steel statically and dynamically balanced.
Operating characteristics: intake air conditions T = 15 °C, p = 760 mm Hg.
Noise: Noise values are obtained through readings taken at the 4 cardinal points at a distance of 1.5 m from the fan.
Orientations: FCN series fans allow 16 orientation positions (8 clockwise RD and 8 counterclockwise LG) defined by looking at the fan from the drive side.
Special constructions: - spark-proof version with washers on non-rotating parts potentially in contact with the fan made of nonferrous material
Anti-corrosive version: execution with paint or special materials (stainless steel)
High temperature version: with cooling fan up to 300 °C, special executions on request for temperatures up to 450 °C.

These characteristics refer to standard operating conditions; in difficult operating conditions, it is advisable to contact ATOMVENT
customer support to install the most suitable type of impeller.

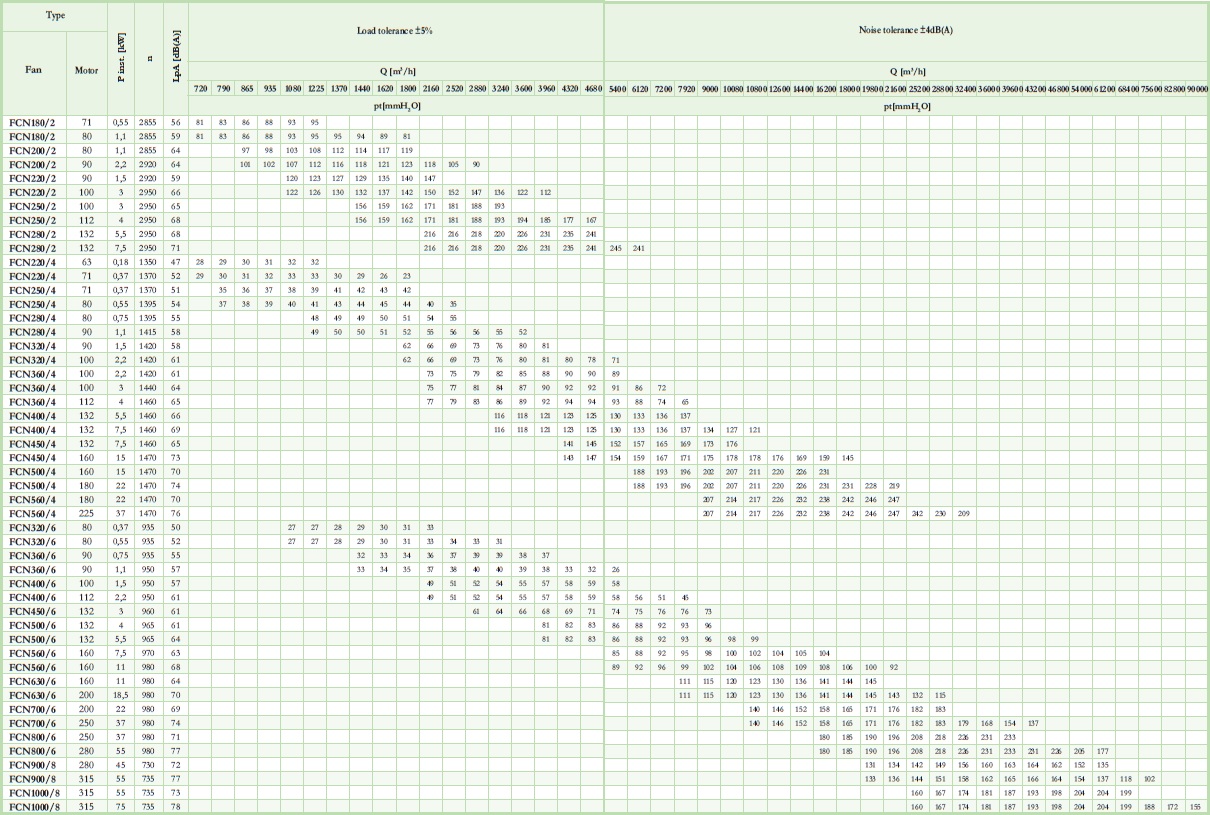

FCN fan specifications table
