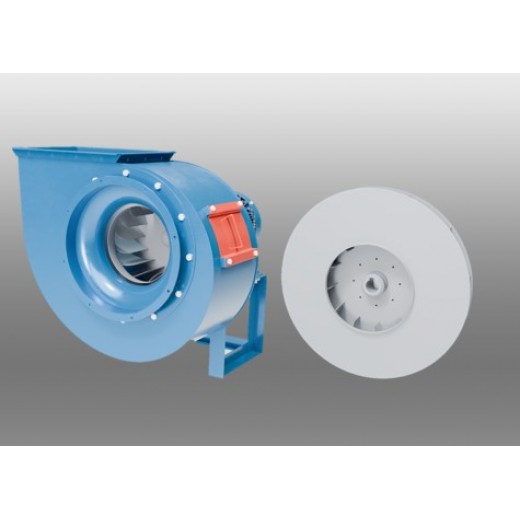

Centrifugal backward-bladed fan (in positive and negative versions) with high efficiency for low flow rates at high pressures, for even dusty air and pneumatic conveying.
Maximum air temperature: 60°C; with cooling fan 300°C. Special constructions on request.
General characteristics of HE-N series fans
Low-medium flow rate. High pressure, performance from 140 m³/h to 22,000 m³/h. Pressure from 1,000 Pa to 30,000 Pa
Applications: for pneumatic conveying, powders, drying, pressurization.
Suitable for use in the industrial field of foundries, pastics, kilns, chemical.
Standard moving air temperature range:
-10°C to +60°C
These characteristics refer to standard operating conditions; in difficult operating conditions, it is advisable to contact ATOMVENT
customer support to install the most suitable type of impeller.

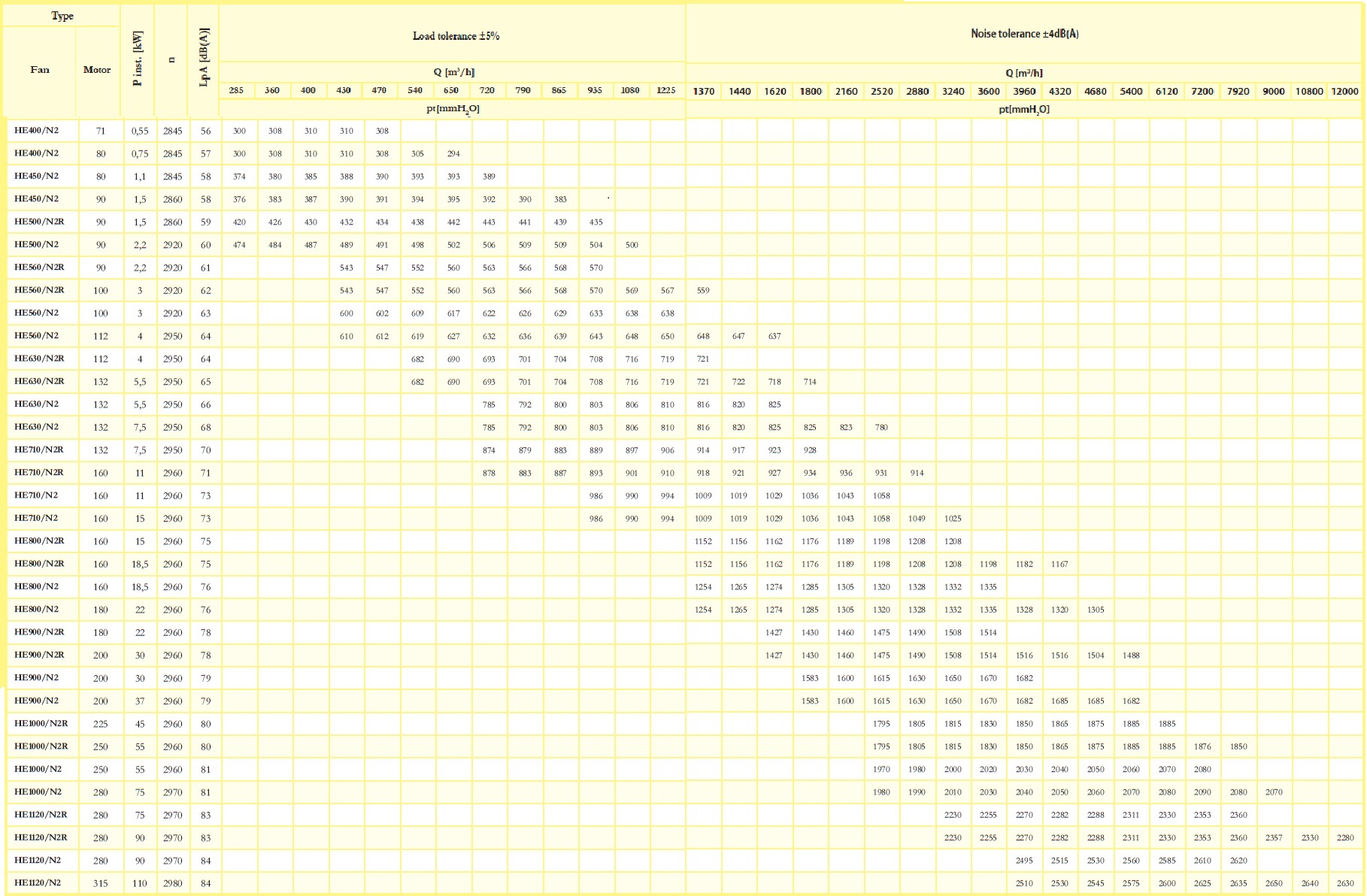

HE-N fan specifications table
