Centrifugal backward-bladed fan (in positive and negative versions) with high efficiency for low flow rates at high pressures,
for even dusty air and pneumatic conveying. Maximum air temperature: 60°C; with cooling fan 300°C. Special constructions on request.
General characteristics of HC-N series fans
Low-medium flow rate. High pressure, performance from 150,0 m³/h to 10000,0 m³/h. Pressure from 1600,0 Pa to 28000,0 Pa.
Applications: for pneumatic conveying, powders, drying, pressurization.
Suitable for use in the industrial field of foundries, pasta factories, ovens, chemical
Standard moving air temperature range:
-10°C to +60°C
These characteristics refer to standard operating conditions; in difficult operating conditions, it is advisable to contact ATOMVENT
customer support to install the most suitable type of impeller.

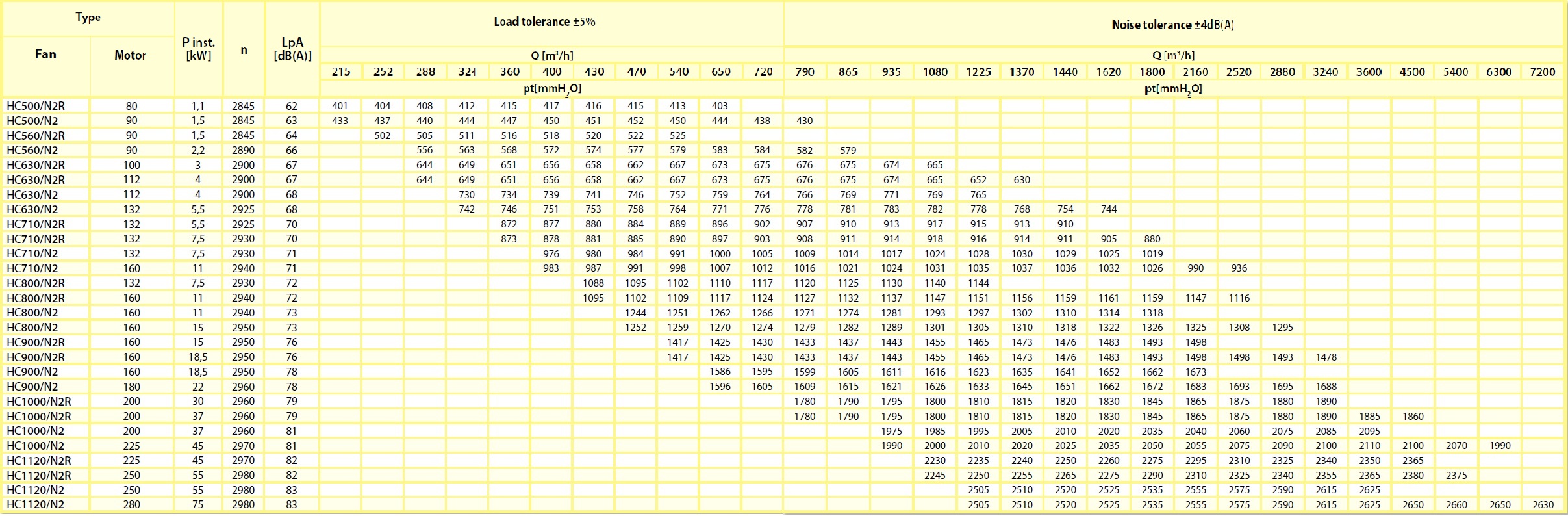

HC-N fan specifications table
