Centrifugal fan for very small flow rates and medium to high pressures. For clean air.
Maximum air temperature: 60°C; with cooling fans 300°C. Special constructions on request.
General characteristics of HA series fans
Low flow rate. High pressure, performance from 50,0 m³/h to 1500,0 m³/h. Pressure from 1700,0 Pa to 20600,0 Pa
Applications: for pneumatic conveying, powders, drying, pressurization.
Suitable for use in the industrial field of foundries, pastry, kilns, chemical.
Standard moving air temperature range:
-10°C to +60°C
These characteristics refer to standard operating conditions; in difficult operating conditions, it is advisable to contact ATOMVENT
customer support to install the most suitable type of impeller.

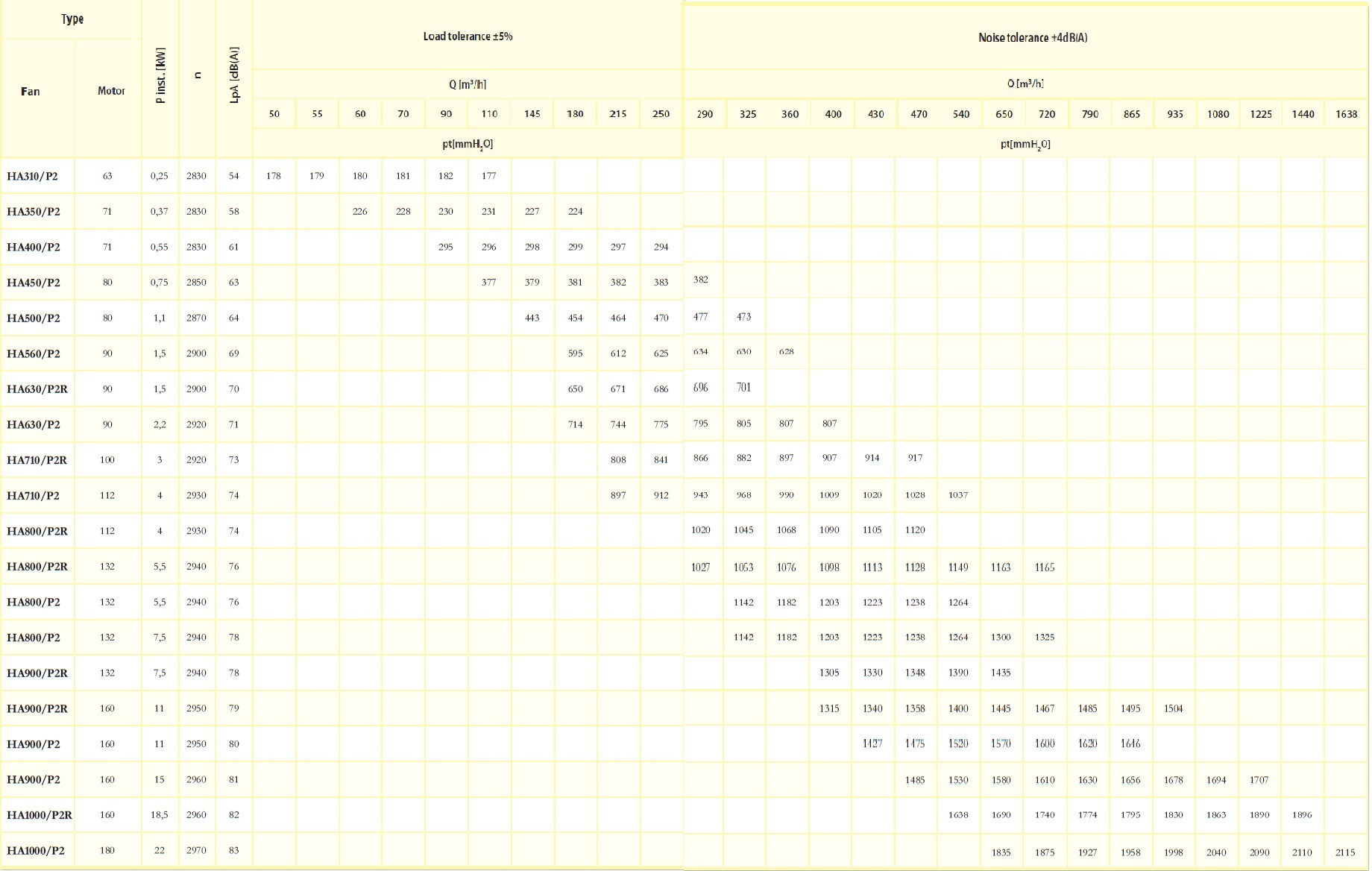

HA fan specifications table
