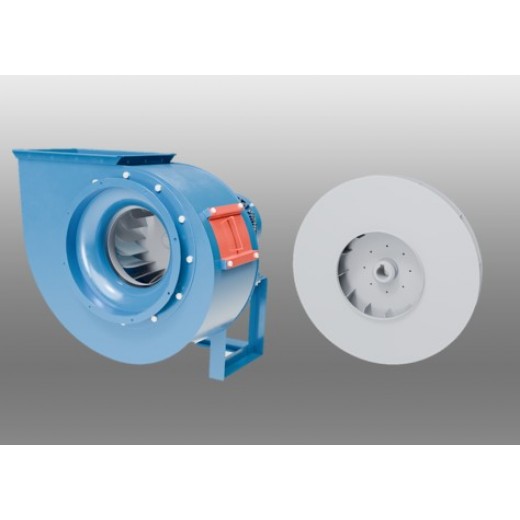

High-efficiency backward-bladed centrifugal fan for medium to high flow rates at high pressure, for even dusty air and pneumatic conveying.
Maximum air temperature: 60°C; with cooling fans 300°C. Special constructions on request.
General characteristics of HI series fans
Low-medium flow rate. High pressure, performance from 850,0 m³/h to 180000,0 m³/h. Pressure from 1000,0 Pa to 18000,0 Pa
Applications: for pneumatic conveying, powders, drying, pressurization.
Suitable for use in the industrial field of foundries, pasta factories, ovens, chemical.
Standard moving air temperature range:
-10°C to +60°C
These characteristics refer to standard operating conditions; in difficult operating conditions, it is advisable to contact ATOMVENT
customer support to install the most suitable type of impeller.

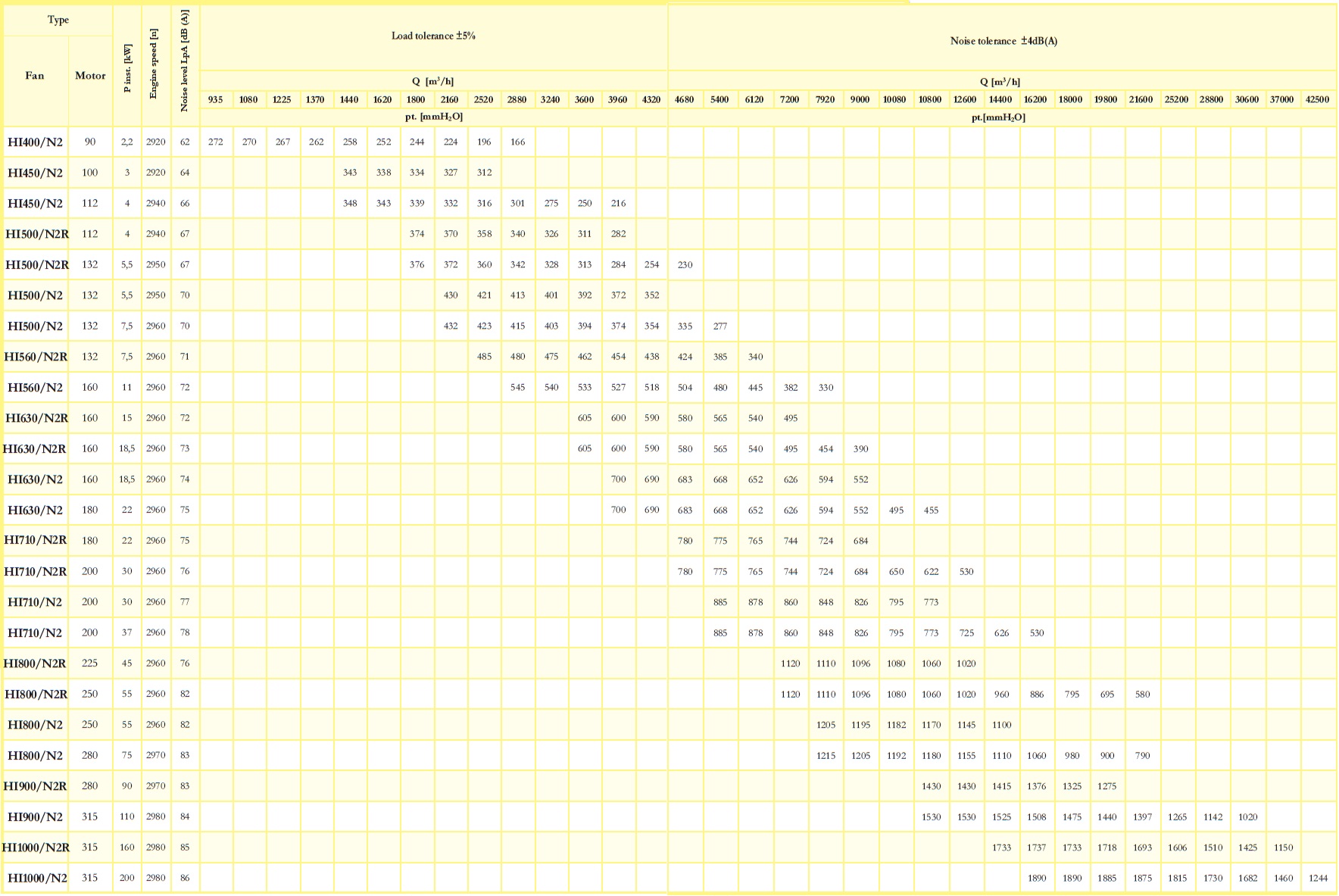

HI fan specifications table
