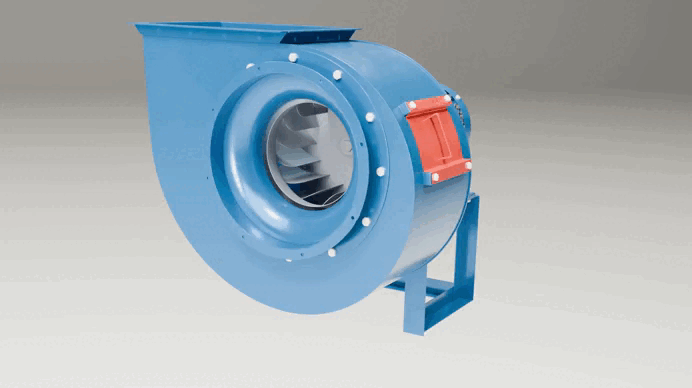

Maximum air temperature 60°C; with cooling fan 300°C. Special constructions on request.Very high efficiency centrifugal fan for high flow rates at medium to high pressures.

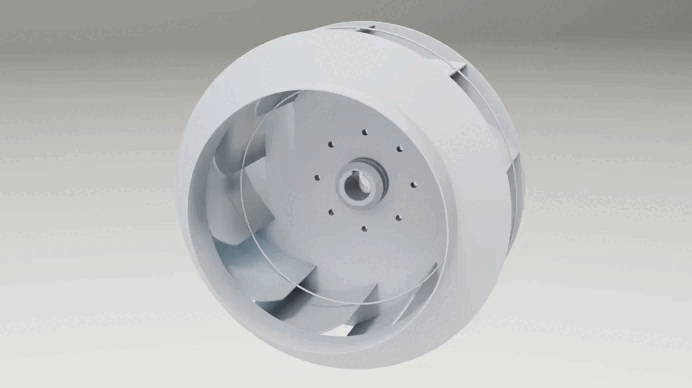

Backward-bladed impeller for dusty air, sawdust and wood chips as long as they are not stringy.

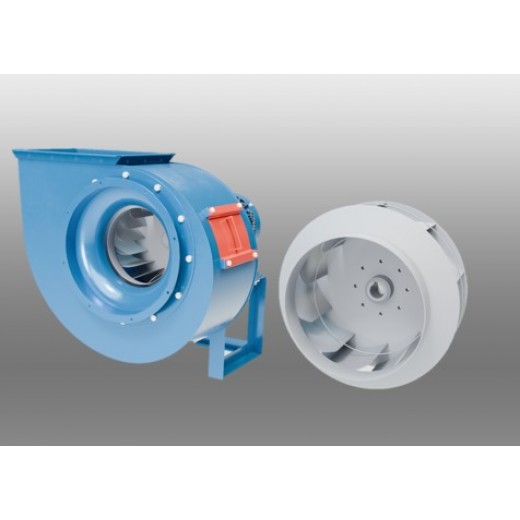

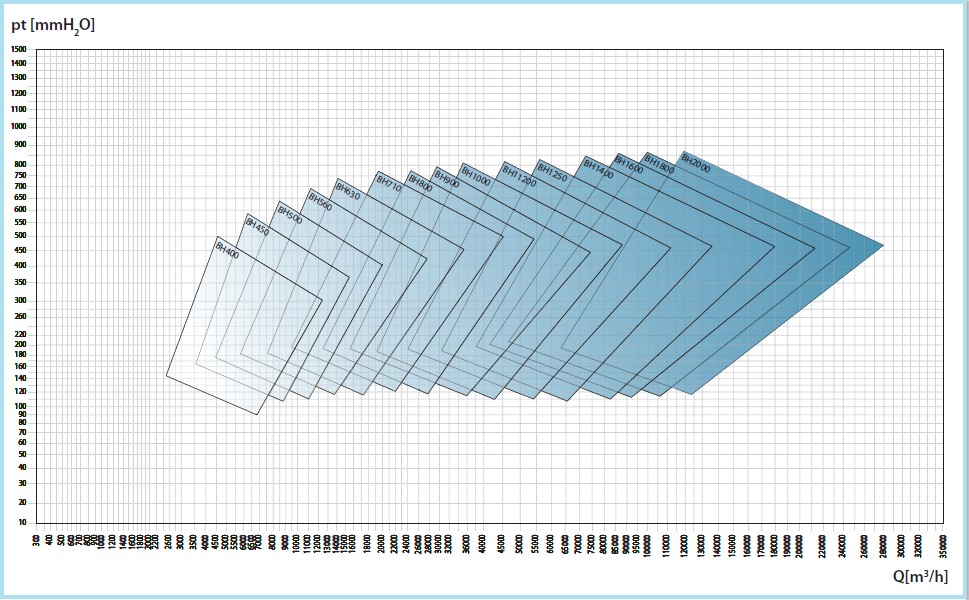

General characteristics of BH series fans Low-medium-high flow rates, low-medium pressures, performance from 1800,0 m³/h to 288000,0 m³/h. Pressure from 600,0 Pa to 5200,0 Pa

Applications: for the inlet and transport of clean or dusry air.

Standard moving air temperature range: -10°C to +60°C Construction features: sturdy construction of painted sheet metal, fan made of sheet steel statically and dynamically balanced.

Special constructions: - spark-proof version with washers on non-rotating parts potentially in contact with the fan made of nonferrous material

Anti-corrosive version: execution with paint or special materials (stainless steel)

High temperature version: with cooling fan up to 300 °C, special executions on request for temperatures up to 450 °C.

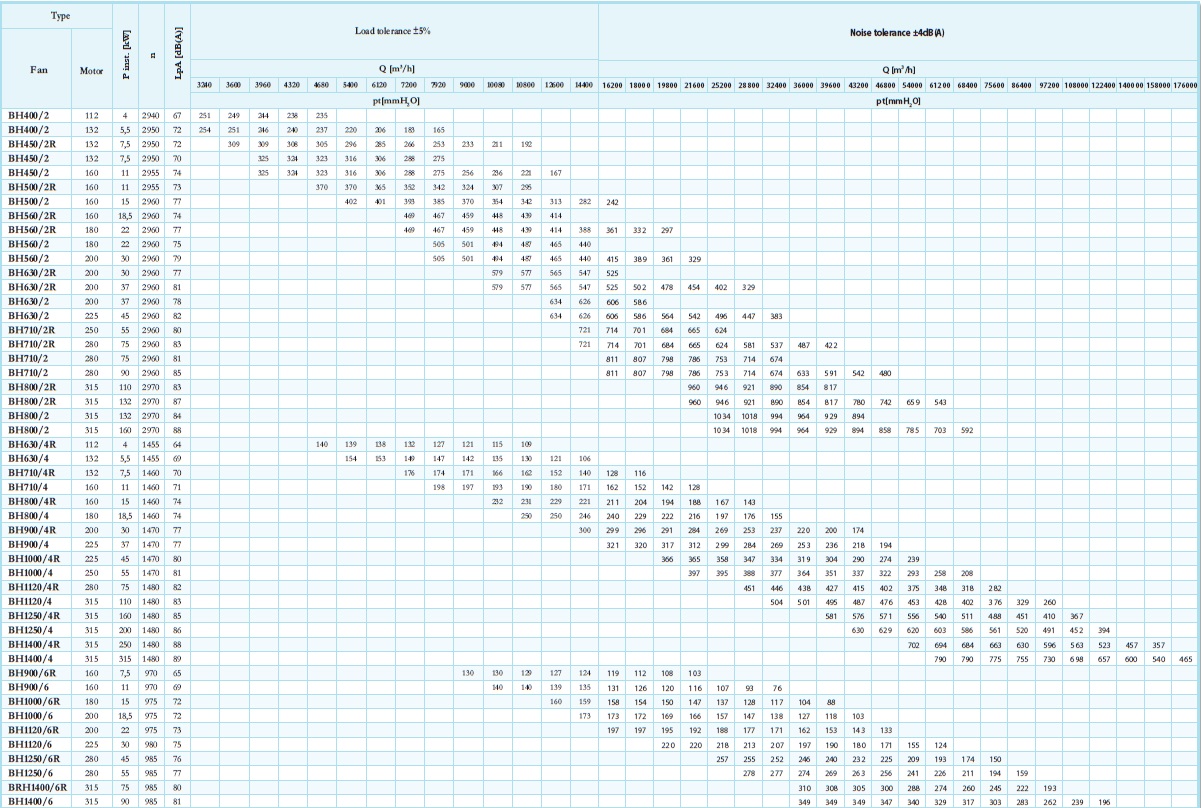

BH fan specifications table
