Centrifugal fan with open blades for medium pressure and medium flow rates, for pneumatic conveying and suction of dusty air including sawdust, chips and filamentous materials.
Maximum air temperature: 60°C. Special constructions on request.
General characteristics of RDM series fans
Medium flow rates. Medium pressure, performance from 200,0 m³/h to 65000,0 m³/h. Pressure from 3000,0 Pa to 5000,0 Pa
Shovel type: straight radial blades
Applications: for pneumatic conveying, solid materials mixed with air, sawdust and wood chips even for fi whiny materials that would clog a closed backward-bladed fan.
Standard moving air temperature range: -10°C to +60°C
Construction features: sturdy construction of painted sheet metal, fan made of sheet steel statically and dynamically balanced.
Special constructions: - spark-proof version with washers on non-rotating parts potentially in contact with the fan made of nonferrous material
Anti-corrosive version: execution with paint or special materials (stainless steel)

These characteristics refer to standard operating conditions; in difficult operating conditions, it is advisable to contact ATOMVENT
customer support to install the most suitable type of impeller.

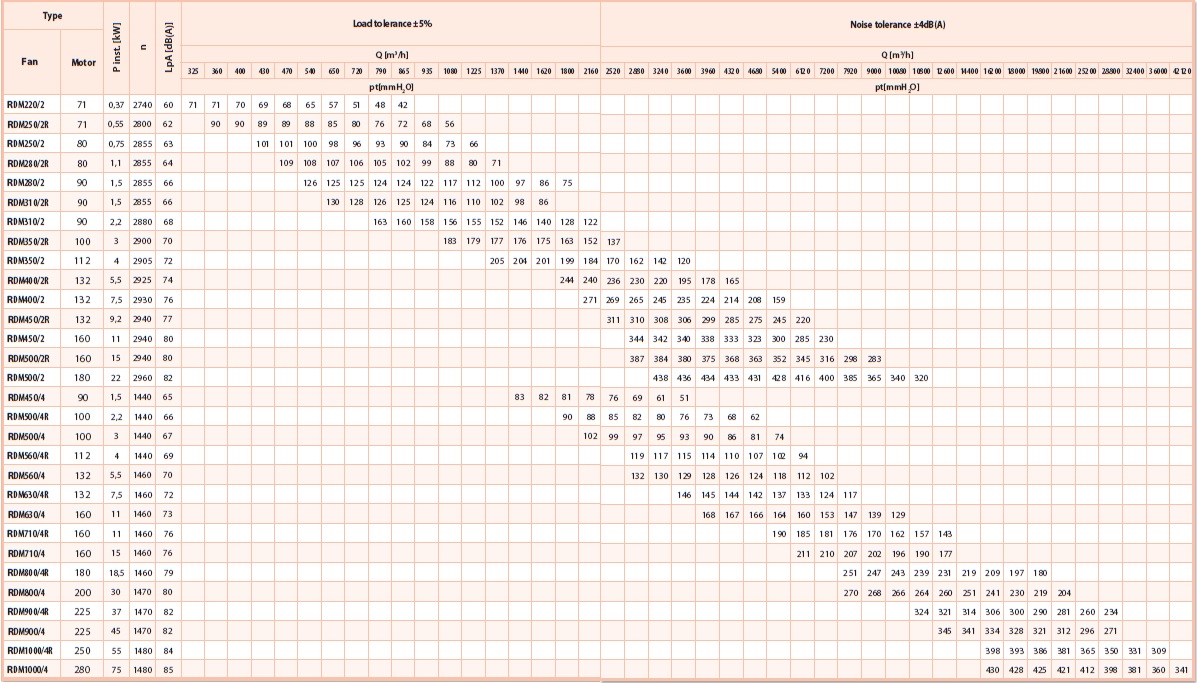

RDM fan specifications table
