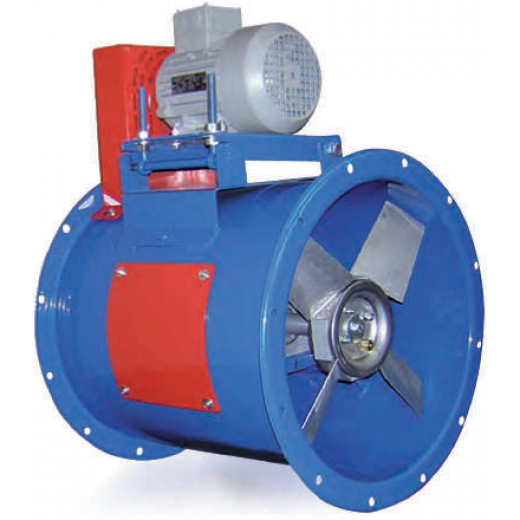

Ducted helical fan with nylon-glass impeller and alternatively cast aluminum impeller. Suitable for moving large volumes of air at low pressure even in the presence of dust or fumes.
Maximum air temperature: 60°C. Special constructions on request.
General characteristics of European AF-T series fans
Impeller: high-performance with air foil blade, fixed angle or variable angle from stationary, constructed of polypropylene or aluminum.
Use: particularly suitable in radiator and cooling tower applications, finds use in foundries, carpentries, paper mills, dryers, chemical industries and general ventilation.

These characteristics refer to standard operating conditions; in difficult operating conditions, it is advisable to contact ATOMVENT
customer support to install the most suitable type of impeller.
EXECUTION AXIAL FANS

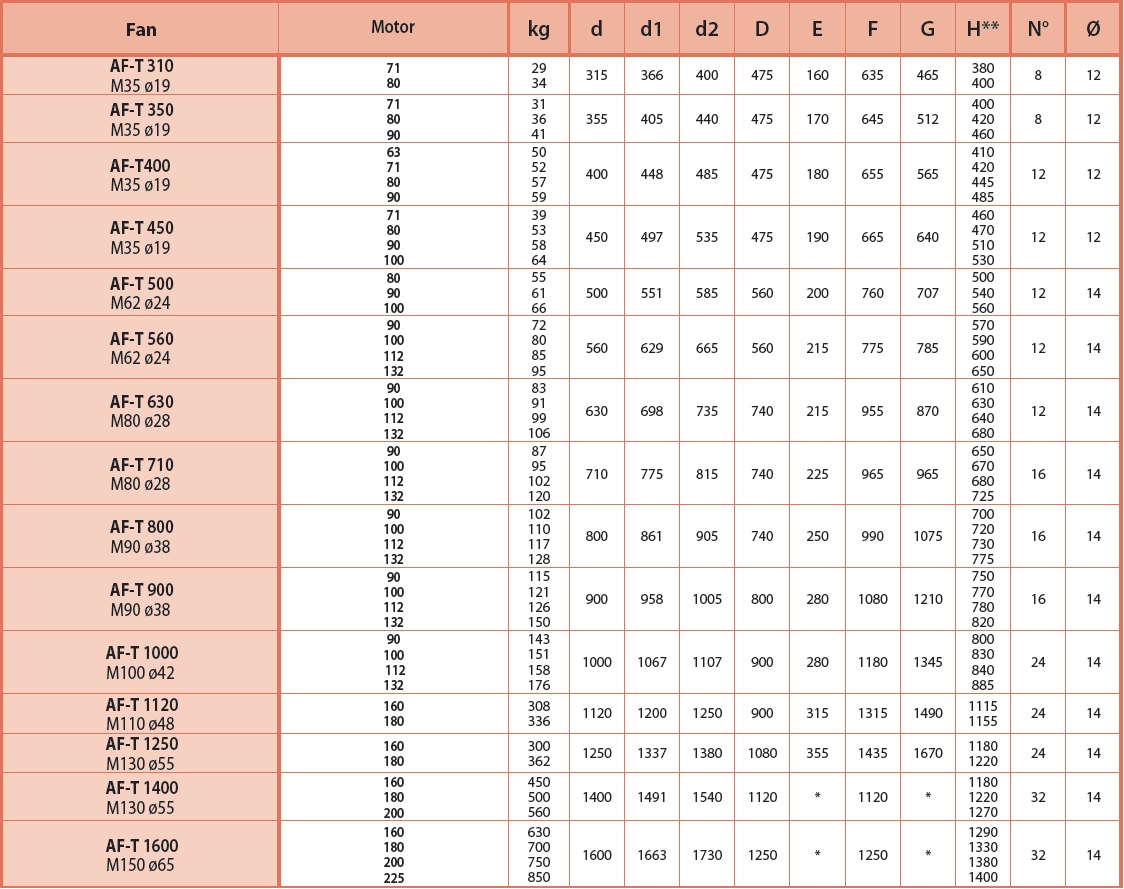

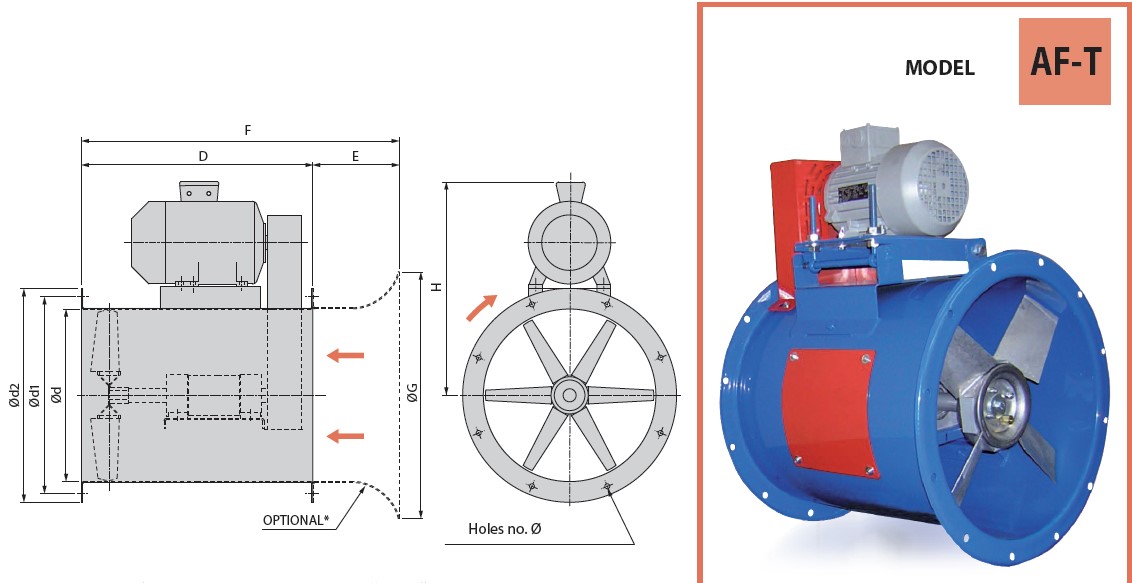

OVERALL DIMENSIONS AND WEIGHT SERIES “AF-T”

For AF/T1400 and AF/T1600, performance to be assessed together with the technical department.
