Maximum air temperature 60 °C; with cooling fan 300 °C. Special design on request.

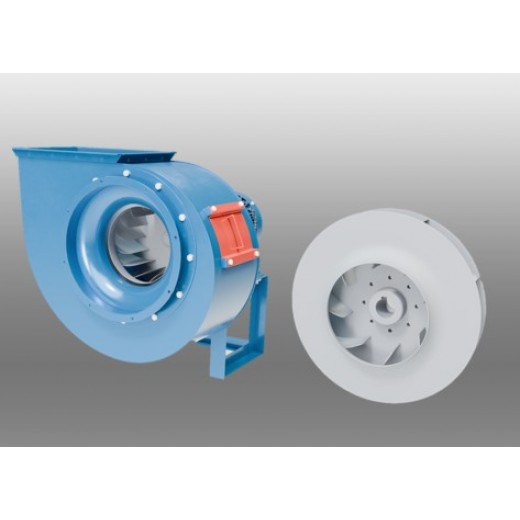

General characteristics of BA series fans

Small to medium flow rates.
Medium pressures. Capacity from 1500.0 m³/h to 140000.0 m³/h.
Pressure from 1500.0 Pa to 11000.0 Pa
Blade type: curved, reverse (negative)
Application: for pneumatic transport, smoke, fine dust. Suitable for transporting solids mixed with air, chips and sawdust with a non-perforated fan.
Standard moving air temperature range: -10 °C to +60 °C
Design features: robust construction made of painted sheet metal, steel sheet fan statically and dynamically balanced.
Special constructions: - spark-proof design with non-ferrous washers on non-rotating parts that may come into contact with the fan
Anti-corrosive versoin: coated or made of special materials (stainless steel)
High temperature version: with cooling fan up to 300 °C, special design on request for temperatures up to 450 °C.
The characteristics listed apply to standard operating conditions; in case of difficult operating conditions, it is advisable to contact ATOMVENT customer support, which will ensure the installation of the most suitable type of impeller.

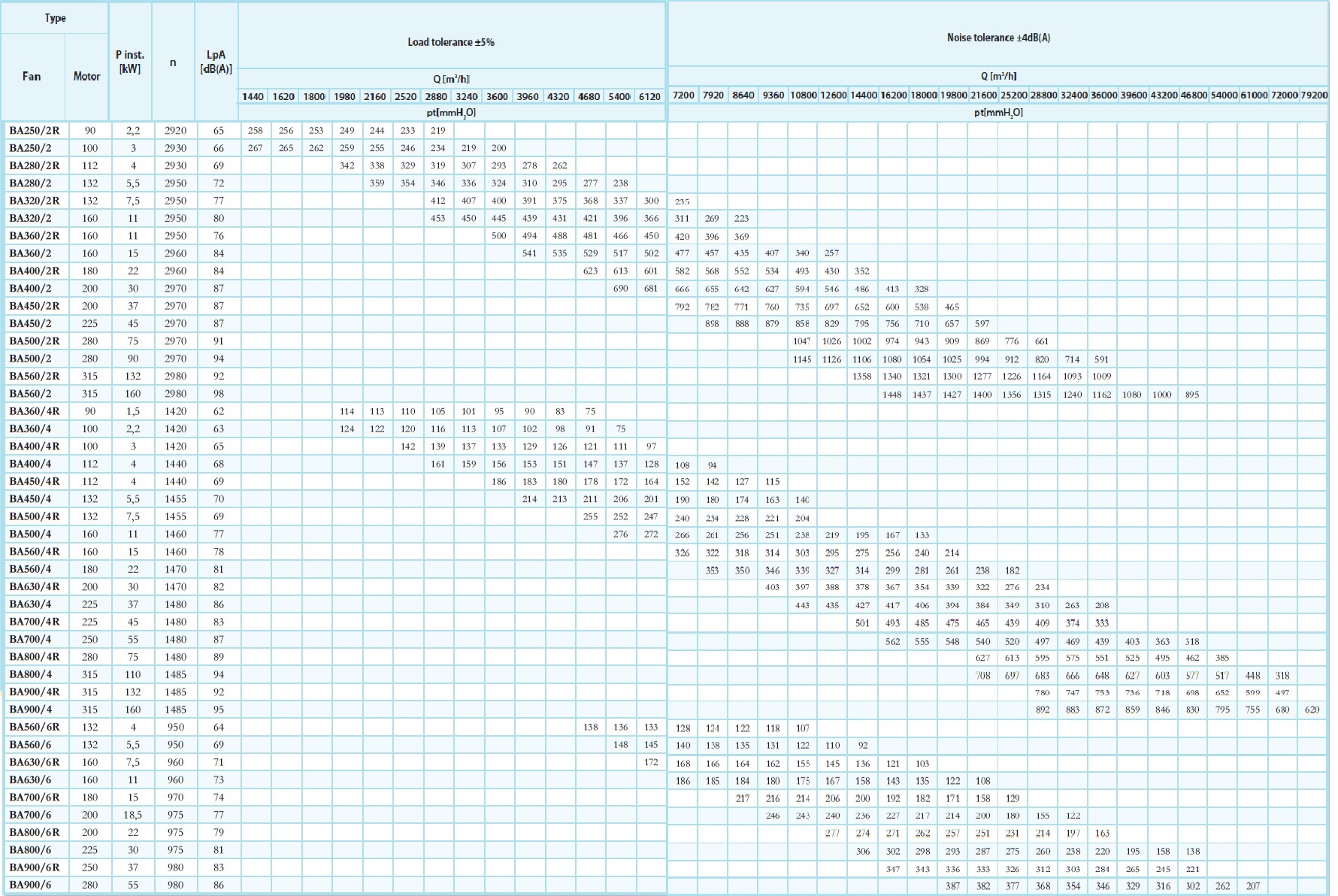

BA fan specifications table
